GP Series

Visual indicator

Polycarbonate or Glass

Cable entries

No.2 standard (No.3 or 4 as option)

Seal

Silicone rubber

Shaft

IP degree

IP66 - IP67

Hardened AISI316L stainless steel

Aluminium surface protection

Aluminium paint

Polyester powder coated Dark Grey colour

Alodine

Technical data

Limit switch availability

Housing material

Copper free aluminium or AISI316L stainless steel

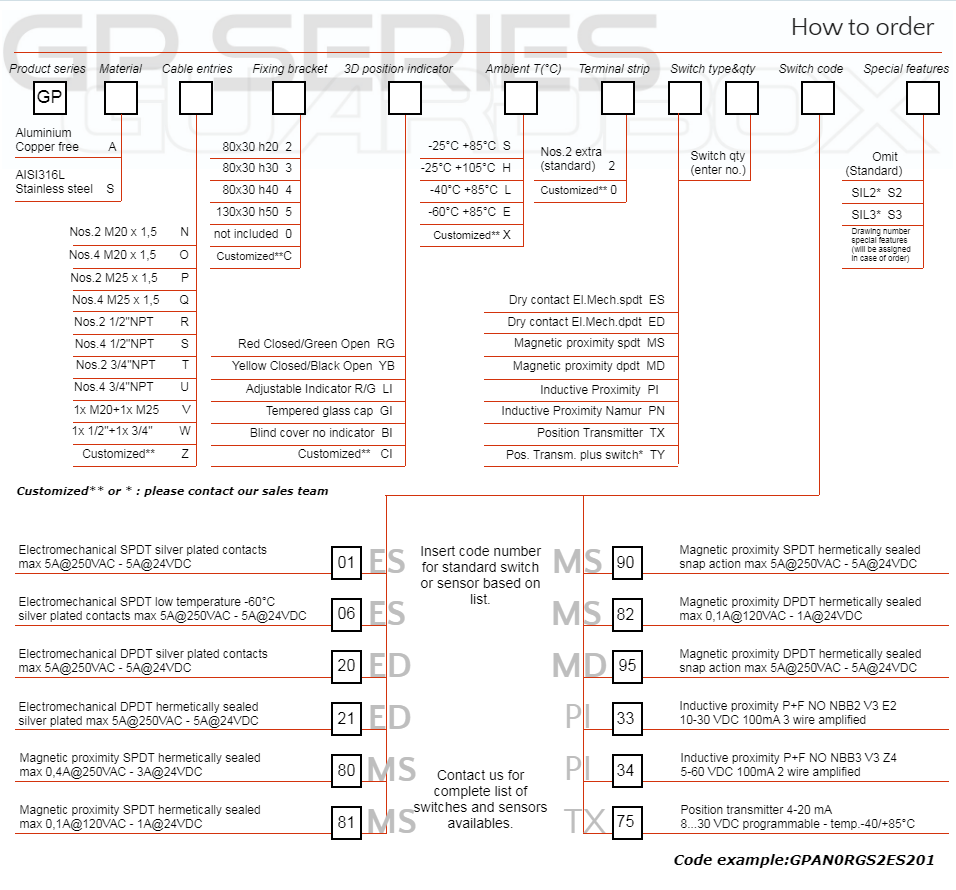

How to order

       Product series    Material      Cable entries      Fixing bracket     3D position indicator          Ambient T(°C)     Terminal strip      Switch type&qty       Switch code      Special features

GP

Nos.2 M20 x 1,5       N

Nos.4 M20 x 1,5       O

Nos.2 M25 x 1,5       P

Nos.4 M25 x 1,5      Q

Nos.2 1/2"NPT        R

Nos.4 1/2"NPT        S

Nos.2 3/4"NPT        T

Nos.4 3/4"NPT        U

1x M20+1x M25       V

1x 1/2"+1x 3/4"        W

Customized**        Z

80x30 h20  2

Customized**C

130x30 h50  5

not included  0

80x30 h30  3

80x30 h40  4

Red Closed/Green Open  RG

Yellow Closed/Black Open  YB

Adjustable Indicator R/G  LI

Tempered glass cap  GI

Blind cover no indicator  BI

Customized**   CI

-25°C +85°C  S

Customized** X

-25°C +105°C  H

-40°C +85°C  L

-60°C +85°C  E

Customized** 0

Nos.2 extra

(standard)    2

Dry contact El.Mech.spdt  ES

Dry contact El.Mech.dpdt  ED

Magnetic proximity spdt  MS

Magnetic proximity dpdt  MD

Inductive Proximity  PI

Inductive Proximity Namur  PN

Position Transmitter  TX

Pos. Transm. plus switch*  TY

Switch qty

(enter no.)

        Omit

(Standard)

SIL2*  S2

SIL3*  S3

Drawing number

special features

(will be assigned

in case of order)

Customized** or * : please contact our sales team

Magnetic proximity DPDT hermetically sealed

max 0,1A@120VAC - 1A@24VDC

Inductive proximity P+F NO NBB2 V3 E2

10-30 VDC 100mA 3 wire amplified

Inductive proximity P+F NO NBB3 V3 Z4

5-60 VDC 100mA 2 wire amplified

Insert code number

for standard switch

or sensor based on

list.





















Contact us for

complete list of switches and sensors availables.

Position transmitter 4-20 mA

8...30 VDC programmable - temp.-40/+85°C

Electromechanical SPDT low temperature -60°C

silver plated contacts max 5A@250VAC - 5A@24VDC

Electromechanical DPDT silver plated contacts

max 5A@250VAC - 5A@24VDC

Electromechanical DPDT hermetically sealed

silver plated max 5A@250VAC - 5A@24VDC

Electromechanical SPDT silver plated contacts

max 5A@250VAC - 5A@24VDC

Aluminium

Copper free         A

AISI316L

Stainless steel    S

01

06

20

21

80

81

90

82

95

33

34

75

Magnetic proximity SPDT hermetically sealed

max 0,4A@250VAC - 3A@24VDC

Code example:GPAN0RGS2ES201

Temperature range

-25°C/+85°C (option -60°C/+105°C)

Magnetic proximity SPDT hermetically sealed

max 0,1A@120VAC - 1A@24VDC

Magnetic proximity SPDT hermetically sealed

snap action max 5A@250VAC - 5A@24VDC

Magnetic proximity DPDT hermetically sealed

snap action max 5A@250VAC - 5A@24VDC

ES

ES

ED

ED

MS

MS

MS

MS

MD

PI

TX
