Quick download

GI Series

Visual indicator

Polycarbonate or Glass

Cable entries

No.2 standard (No.3 or 4 as option)

Seal

Silicone rubber

Shaft

IP degree

IP66 - IP67

Hardened AISI316L stainless steel

Aluminium surface protection

Aluminium paint

Polyester powder coated RAL 5015 Blue colour

Alodine

Technical data

Limit switch availability

Housing material

Copper free aluminium or AISI316L stainless steel

       Product series    Material      Cable entries      Fixing bracket     3D position indicator          Ambient T(°C)     Terminal strip      Switch type&qty       Switch code      Special features

GI

Customized** or * : please contact our sales team

TX

Code example:GISR0RGS2PN450

PN

Insert code number

for standard switch

or sensor based on

list.

























Contact us for

complete list of switches and sensors availables.

ES

ES

ED

ED

MS

MD

PN

Nos.2 M20 x 1,5       N

Nos.4 M20 x 1,5       O

Nos.2 M25 x 1,5       P

Nos.4 M25 x 1,5      Q

Nos.2 1/2"NPT        R

Nos.4 1/2"NPT        S

Nos.2 3/4"NPT        T

Nos.4 3/4"NPT        U

1x M20+1x M25       V

1x 1/2"+1x 3/4"        W

Customized**        Z

80x30 h20  2

Customized**C

130x30 h50  5

not included  0

80x30 h30  3

80x30 h40  4

Red Closed/Green Open  RG

Yellow Closed/Black Open  YB

Adyustable Indicator R/G  LI

Tempered glass cap  GI

Blind cover no indicator  BI

Customized**   CI

-25°C +85°C  S

Customized** X

-25°C +105°C  H

-40°C +85°C  L

-60°C +85°C  E

Customized** 0

Nos.2 extra

(standard)    2

Dry contact El.Mech.spdt  ES

Dry contact El.Mech.dpdt  ED

Magnetic proximity spdt  MS

Magnetic proximity dpdt  MD

Inductive Proximity Namur  PN

Position Transmitter  TX

Pos. Transm. plus switch*  TY

Switch qty

(enter no.)

        Omit

(Standard)

SIL2*  S2

SIL3*  S3

Drawing number

special features

(will be assigned

in case of order)

Aluminium

Copper free         A

AISI316L

Stainless steel    S

Inductive proximity Namur P+F NJ2 V3 N

nominal voltage 8VDC temp.range -25°C/+100°C

Position transmitter 4-20 mA Exia loop link HART

8...30 VDC programmable - temp.-40/+85°C

Electromechanical SPDT gold plated contacts

sealed max 16V 76mA

Electromechanical DPDT gold plated contacts

max 16V 76mA

02

03

22

23

81

82

50

51

56

Inductive proximity Namur P+F NJ4 12GK N

nominal voltage 8VDC temp.range -25°C/+100°C

54

Inductive proximity Namur P+F SJ3,5 N

nominal voltage 8VDC temp.range -25°C/+100°C

Electromechanical DPDT gold plated contacts

sealed max 16V 76mA

57

Magnetic proximity SPDT hermetically sealed

max 16V 76mA

Inductive proximity Namur P+F NJ4 12GK SN

nominal voltage 8VDC temp.range -50°C/+100°C

Electromechanical SPDT gold plated contacts LT -60°C

max 16V 76mA

76

Inductive proximity Namur P+F SJ3,5 SN

nominal voltage 8VDC temp.range -50°C/+100°C

Magnetic proximity DPDT hermetically sealed

max 16V 76mA

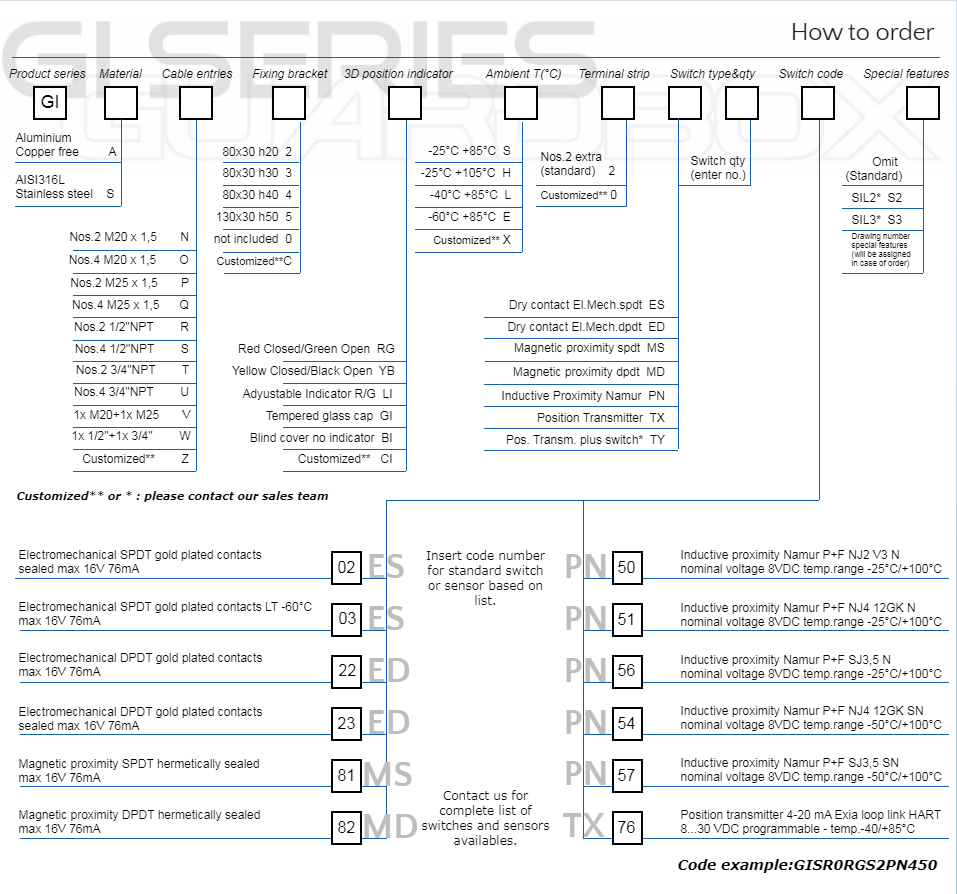

How to order

Temperature range

-25°C/+85°C (option -60°C/+105°C)

PN

PN

PN

Certificate

IECEx EXA 15.0007X

Certificate

EXA 15 ATEX 0040X
