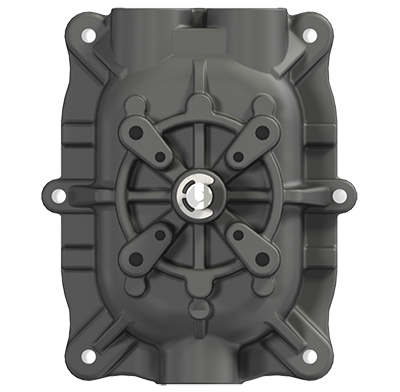

GD Series

Visual indicator

Polycarbonate or Glass

Temperature range

-25°C/+85°C (option -60°C/+105°C)

Seal

Silicone rubber

Shaft

IP degree

IP66 - IP68

Hardened AISI316L stainless steel

Aluminium surface protection

Aluminium paint

Polyester powder coated Dark Grey colour

Alodine

Technical data

Limit switch availability

Housing material

Copper free aluminium or AISI316L stainless steel

© 2014  |  Privacy Policy



       Product series    Material      Cable entries      Fixing bracket     3D position indicator          Ambient T(°C)     Terminal strip      Switch type&qty       Switch code      Special features

GD

Customized** or * : please contact our sales team

Code example:GDAM0RGS2MS281

PI

Insert code number

for standard switch

or sensor based on

list.

























Contact us for

complete list of switches and sensors availables.

ES

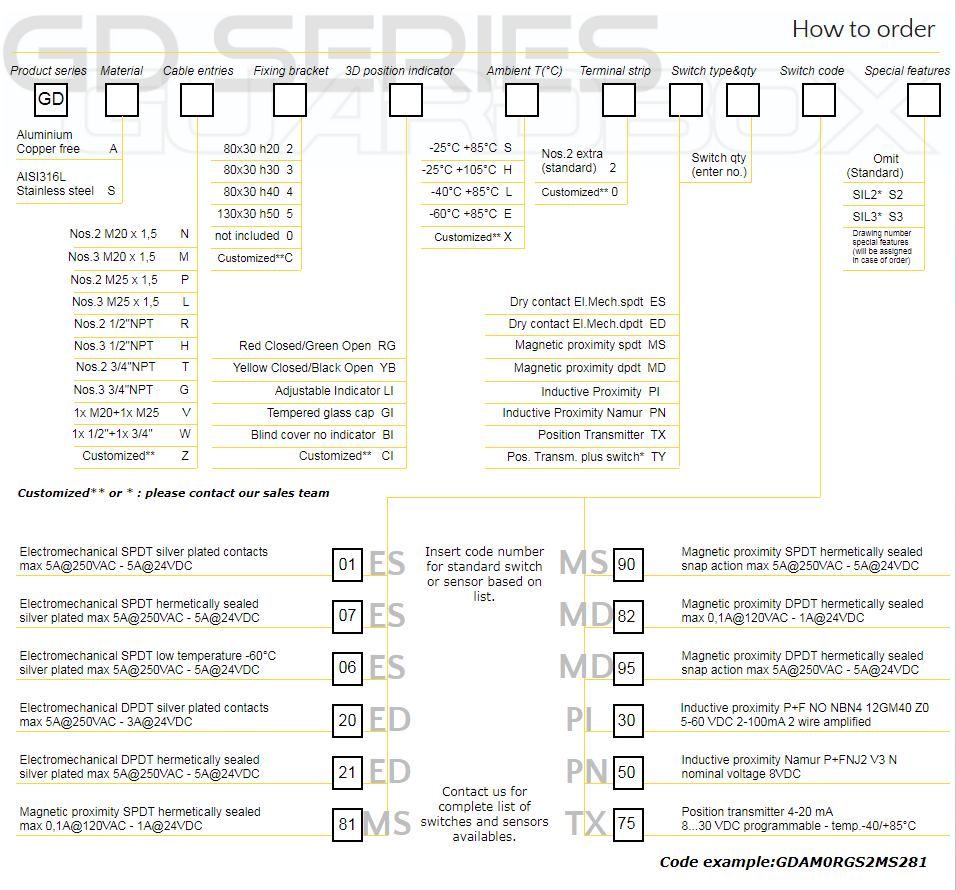

How to order

80x30 h20  2

Customized**C

130x30 h50  5

not included  0

80x30 h30  3

80x30 h40  4

-25°C +85°C  S

Customized** X

-25°C +105°C  H

-40°C +85°C  L

-60°C +85°C  E

Customized** 0

Nos.2 extra

(standard)    2

Dry contact El.Mech.spdt  ES

Dry contact El.Mech.dpdt  ED

Magnetic proximity spdt  MS

Magnetic proximity dpdt  MD

Inductive Proximity  PI

Inductive Proximity Namur  PN

Position Transmitter  TX

Pos. Transm. plus switch*  TY

Switch qty

(enter no.)

        Omit

(Standard)

SIL2*  S2

SIL3*  S3

Drawing number

special features

(will be assigned

in case of order)

Aluminium

Copper free         A

AISI316L

Stainless steel    S

Nos.2 M20 x 1,5       N

Nos.2 M25 x 1,5       P

Nos.2 1/2"NPT        R

Nos.3 1/2"NPT        H

Nos.2 3/4"NPT        T

Nos.3 3/4"NPT        G

1x M20+1x M25       V

1x 1/2"+1x 3/4"        W

Customized**        Z

Red Closed/Green Open  RG

Yellow Closed/Black Open  YB

Adjustable Indicator LI

Tempered glass cap  GI

Blind cover no indicator  BI

Customized**   CI

Magnetic proximity DPDT hermetically sealed

max 0,1A@120VAC - 1A@24VDC

Inductive proximity P+F NO NBN4 12GM40 Z0

5-60 VDC 2-100mA 2 wire amplified

Inductive proximity Namur P+FNJ2 V3 N

nominal voltage 8VDC

Position transmitter 4-20 mA

8...30 VDC programmable - temp.-40/+85°C

Electromechanical SPDT hermetically sealed

silver plated max 5A@250VAC - 5A@24VDC

Electromechanical SPDT low temperature -60°C

silver plated max 5A@250VAC - 5A@24VDC

Electromechanical DPDT silver plated contacts

max 5A@250VAC - 3A@24VDC

Electromechanical SPDT silver plated contacts

max 5A@250VAC - 5A@24VDC

01

07

06

20

21

81

90

82

95

30

50

75

Nos.3 M20 x 1,5       M

Nos.3 M25 x 1,5       L

Certificate

IECEx EXA 15.0008X

Certificate

EXA 15 ATEX 0039X

Cable entries

No.2 standard (No.3 as option)

ES

ES

ED

ED

Electromechanical DPDT hermetically sealed

silver plated max 5A@250VAC - 5A@24VDC

Magnetic proximity SPDT hermetically sealed

max 0,1A@120VAC - 1A@24VDC

MS

Magnetic proximity SPDT hermetically sealed

snap action max 5A@250VAC - 5A@24VDC

MD

MD

Magnetic proximity DPDT hermetically sealed

snap action max 5A@250VAC - 5A@24VDC

PN

MS

TX
